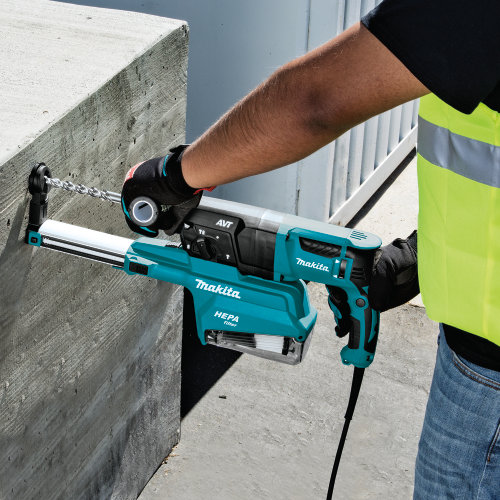

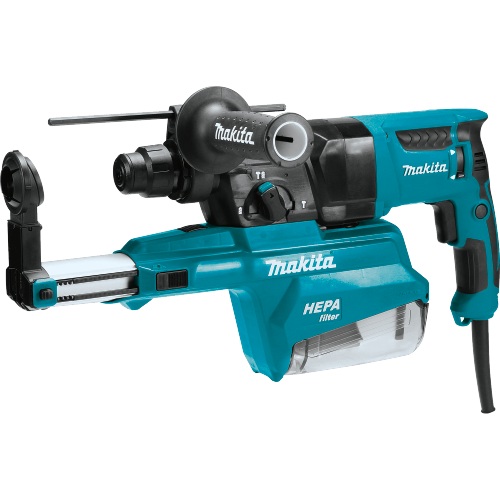

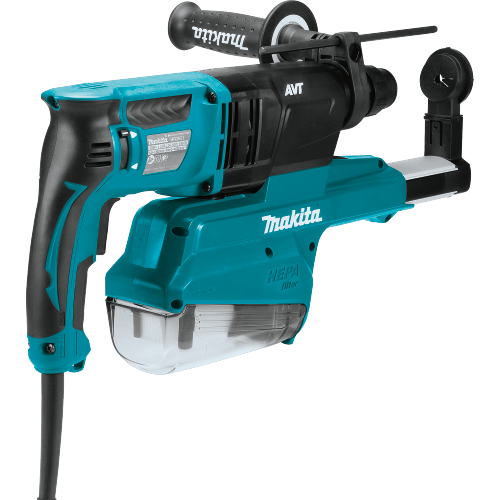

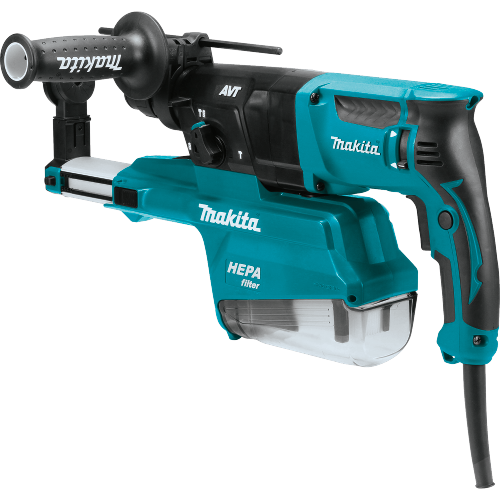

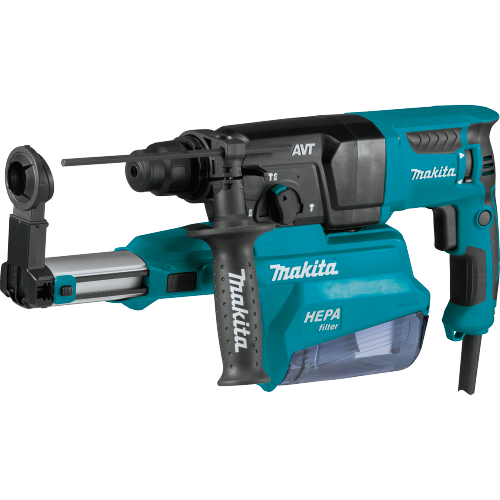

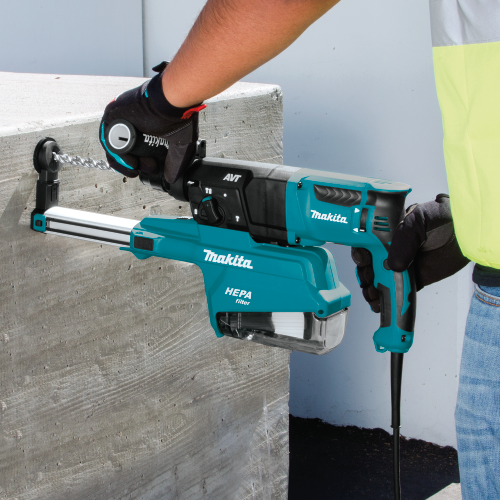

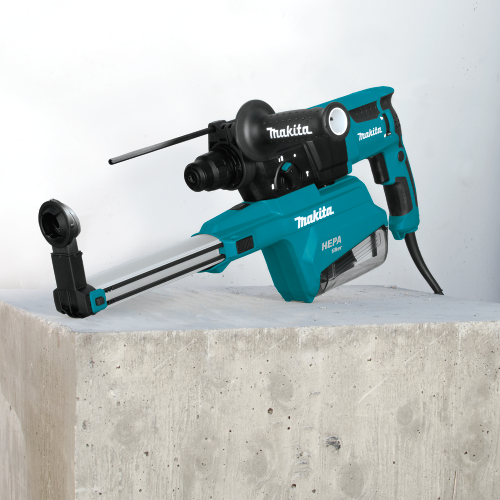

The Makita 1” AVT Rotary Hammer with HEPA Dust Extractor (model HR2651, with Pistol Grip) is a total solution that combines efficient drilling and chipping with reduced vibration and improved dust extraction. The HR2651 is engineered with Anti-Vibration Technology (AVT), an internal counterbalance system for significantly less vibration. It has a built-on dust extractor that captures concrete dust during drilling. The HR2651 combines these performance features in a compact size. It is ideal for a range of applications including overhead drilling into concrete, wood and metal, removing tile, and more.The HR2651 has a 7 AMP motor that delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications. The 3-mode operation offers “rotation only”, “hammering with rotation” or “chipping only” for multiple applications. Modes can be easily changed with a recessed hammer-function selector, which is located below the gear housing for improved durability. The ergonomic pistol grip handle with a rubberized soft grip provides increased operator comfort.The dust extractor is activated by the tool for operator convenience and is equipped with an efficient HEPA filtration system that captures 99.97% of particulates .3 microns and larger. It has a transparent dust container with an accurate level indicator of collected material for added convenience.
KEY FEATURES

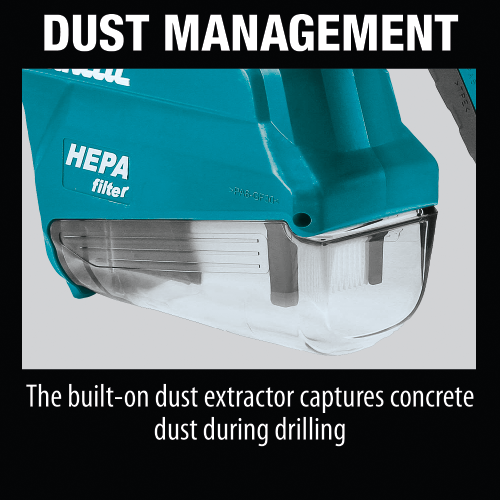

Dust managementThe built-on dust extractor captures concrete dust during drilling
Efficiency: Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger

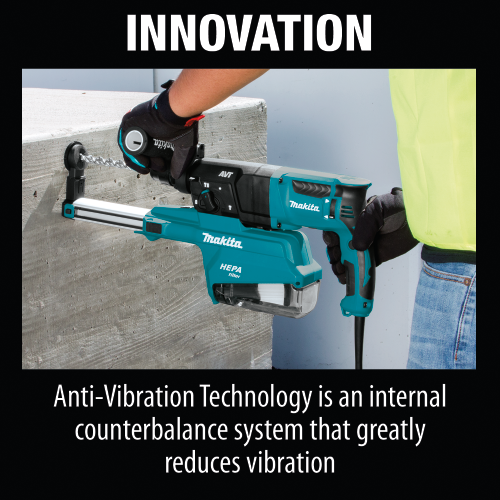

Innovation: Anti-Vibration Technology is an internal counterbalance system that greatly reduces vibration

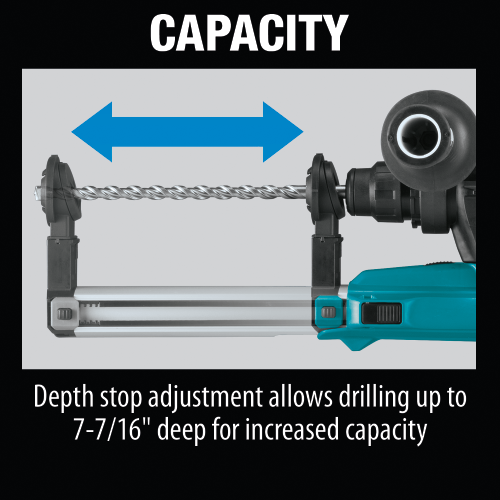

Capacity: Depth stop adjustment allows drilling up to 7-1/2 in. deep for increased capacity

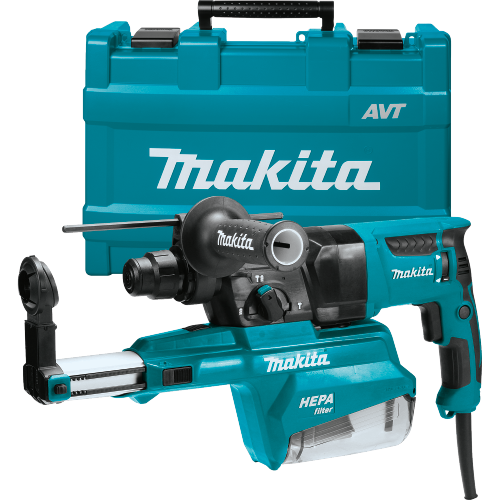

Includes: Dust extractor, side handle, depth gauge and tool case
Powerful 7 AMP motor delivers 2.1 ft.lbs. of impact energy to handle the most demanding applications
Anti-Vibration Technology (AVT) is an internal counterbalance system that greatly reduces vibration by moving a counterweight in the opposite direction of the drive piston

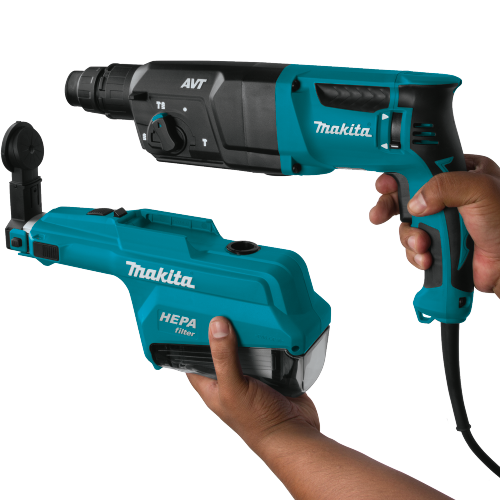

The built-on dust extractor captures concrete dust during drilling and is activated by the tool for operator convenience

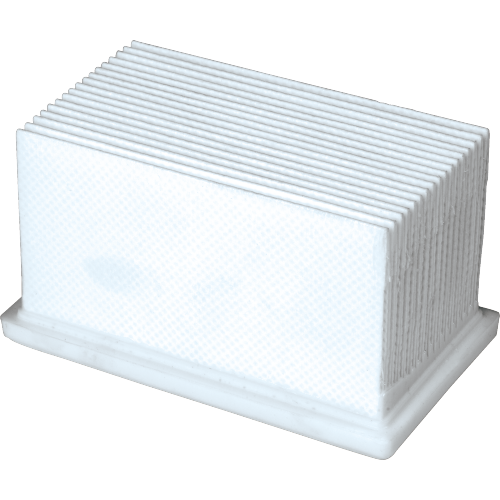

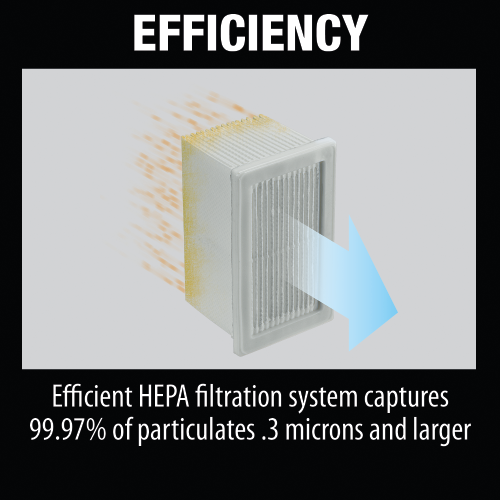

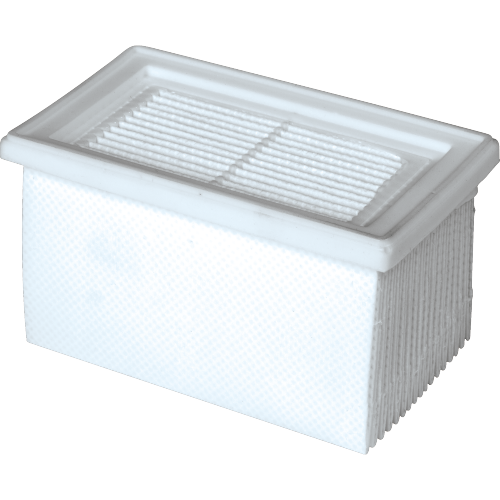

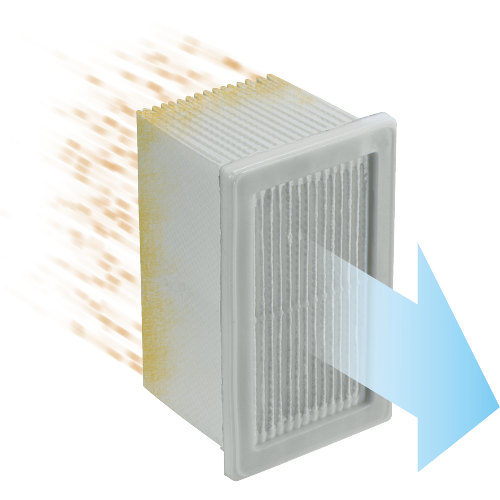

Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger

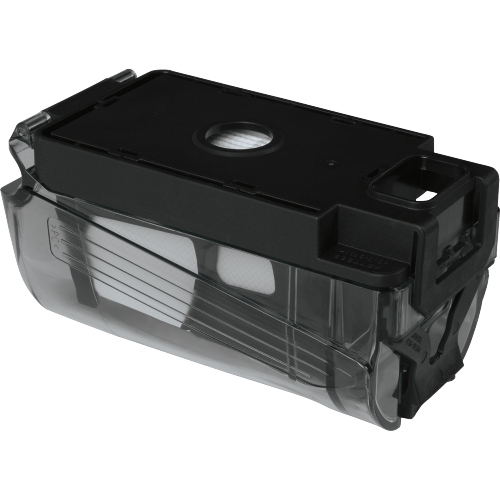

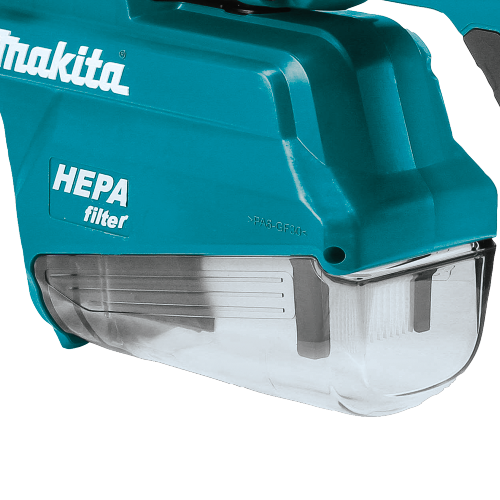

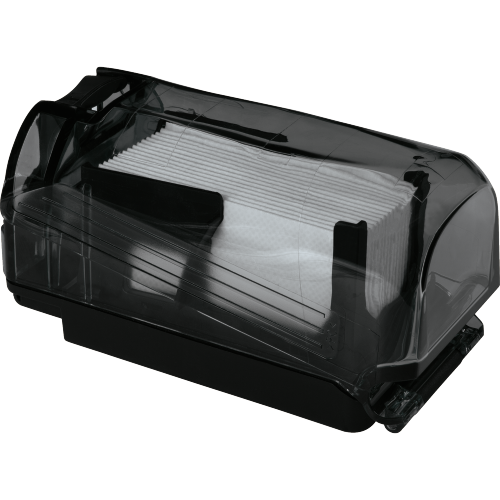

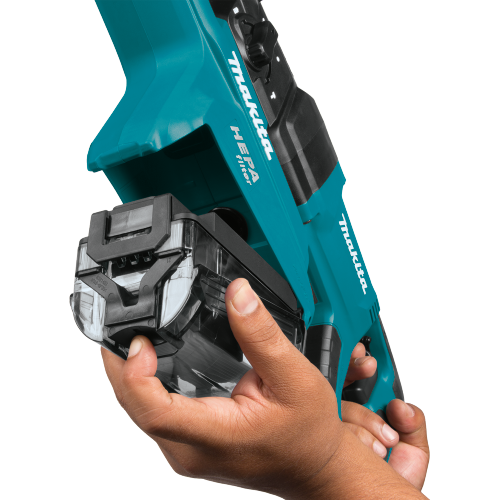

Transparent dust container provides needed visibility in determining when the dust box needs to be emptied
Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds

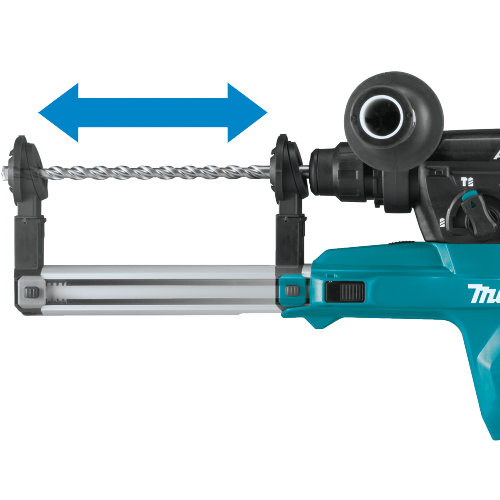

Depth stop adjustment allows drilling up to 7-1/2 in. deep for increased capacity
3-mode operation for in.Rotation Only in., in.Hammering with Rotation in. or in.Chipping Only in. for multiple applications
Variable speed trigger enables user to match the speed to the application for greater versatility
40 bit angle settings allow the bit to be set at different positions for operating convenience
Ergonomic in.Pistol-grip in. handle with rubberized soft grip for increased Comfort
Technical DIMENSIONS
Amperage
7 A
Maximum Capacity (Concrete Drilling)
1 in.
Optimum Range (Concrete Drilling)
1/4 in. - 5/8 in.
Maximum Hole Depth
7-7/16 in.
Maximum Capacity (Concrete Drilling with Core Bit)
