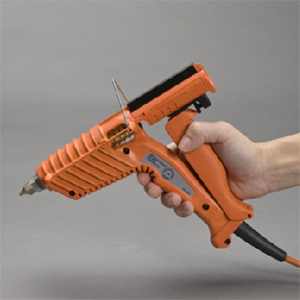

Scotch-Weld™ Hot Melt Applicator TC with Quadrack Converter/Palm Trigger, Orange

KEY FEATURES

• Features:
• This unique tool features touch control
• which delivers adhesives evenly and precisely at rates up to 3.5 pounds per hour
• It employs an exclusive cartridge holder and dispensing mechanism, that is simple, non-fatiguing and smooth flowing
• With the Quadrack Converter, it can utilize larger glue cartridges and production capacity can be increased 3 to 4 times
• Rugged and reliable, it can be left on all day without back melt or burn out
• Uses 5/8" diameter cartridges and weighs only 10 ounces
• 5 minute warm up with 385° F operating temperature
• Provides a continuous adhesive flow with a single cartridge load
• Gives an approximate 89" x 1/8" smooth, even bead
• Adhesives are 100% solids thermoplastic resins
• When heated, they become fluid and quickly wet the bonding surface
• Upon cooling, they harden and usually reach bond strength in seconds
• Assembled products can be moved immediately to keep production flowing
• The applicators are lightweight, easy-to-use units utilizing progressive feed technology
